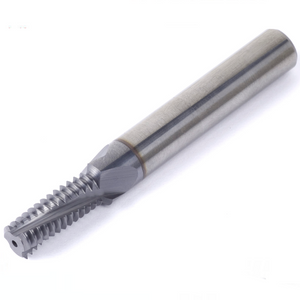

WHIT / BSW 9/16"x 12-2xDo- 12 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)
104-00110
Thread Milling TM Solid Carbide HeliCool EX/IN 12 TPI W Shank Diameter 12 (mm) Cutting Diameter 11.3 (mm) Tool Overhang 28.57 (mm) VTH Grade
- For Internal and EXTERNAL Machining
- For WHIT threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Axial coolant for blind holes
| Thread Standard | WHIT / BSW |
| Pitch | 12TPI |
| EXT/INT | EX/ IN |
| Coolant | Yes |
| L | 28.57mm |
| L1 | 28.57mm |
| Le | 28.57mm |
| Cut Dia | 11.3mm |
| Z | 4 |
| Zt | 13 |
| Grade | VTH |
| Coating | TiCN |
| Description | HC12113L28-EI12BSWTMVTH |
| Shank Dia | 12mm |
104-00110 WHIT / BSW 9/16"X 12-2XDO- 12 TPI PITCH HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH AXIAL COOLANT - (HELICOOL SERIES - VARDEX)
