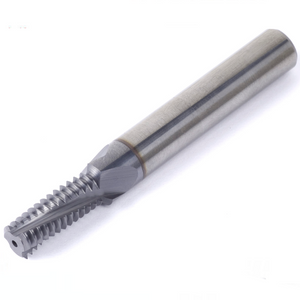

WHIT / BSW 5/8"x 11-2xDo- 11 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)
104-00112
Thread Milling TM Solid Carbide HeliCool EX/IN 11 TPI W Shank Diameter 14 (mm) Cutting Diameter 12.6 (mm) Tool Overhang 33.48 (mm) VTH Grade
- For Internal and EXTERNAL Machining
- For WHIT threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Axial coolant for blind holes
| Thread Standard | WHIT / BSW |
| Pitch | 11TPI |
| EXT/INT | EX/ IN |
| Coolant | Yes |
| L | 33.48mm |
| L1 | 33.48mm |
| Le | 33.48mm |
| Cut Dia | 12.6mm |
| Z | 4 |
| Zt | 14 |
| Grade | VTH |
| Coating | TiCN |
| Description | HC14126L33-EI11BSWTMVTH |
| Shank Dia | 14mm |
104-00112 WHIT / BSW 5/8"X 11-2XDO- 11 TPI PITCH HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH AXIAL COOLANT - (HELICOOL SERIES - VARDEX)
