WCMT 080404E-FM T8430 Carbide Turning Inserts (For Stainless Steel) - Dormer Pramet
WCMT 080404E-FM T8430
Dormer Pramet Carbide Turning Inserts.

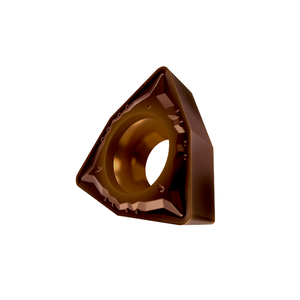

Single-sided positive turning insert, 80° trigon with 7° clearance, inscribed circle diameter of 12.7mm, 4.76mm thick, 0.4mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO ranges P20 -P40 and M20 -M35, for fine to medium machining of steels and stainless-steels
This price is for a box of 10 inserts.
| Insert Style |
WCMT |
| Insert Size |
080404E |
| Grade |
T8430 |
| Chip Breaker Type |
FM |
| Corner Radius (RE) | 0.4mm |
| Height (IC) |
12.7mm |
| Hole Diameter (D1) | 5.5mm |
| Cutting Edge Length (L) | 8.7mm |
| Insert Thickness (S) | 4.76mm |
| Cutting Edge Material | Carbide |
