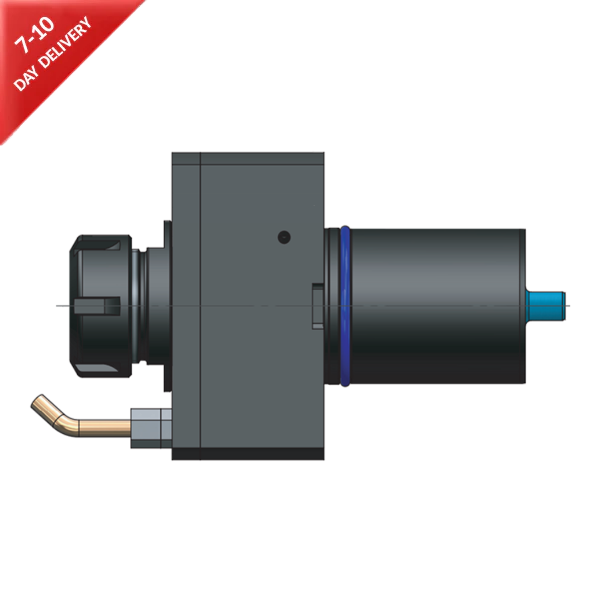

VDI 55 Axial Driven Tooling ER32 Collet Chuck to Suit Takisawa TS 4000Y Coupling - 88mm Gauge - Eroglu
TS4AX55E32088
Takisawa TS 4000Y - VDI 55 - ER32 (2-20) - 88mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

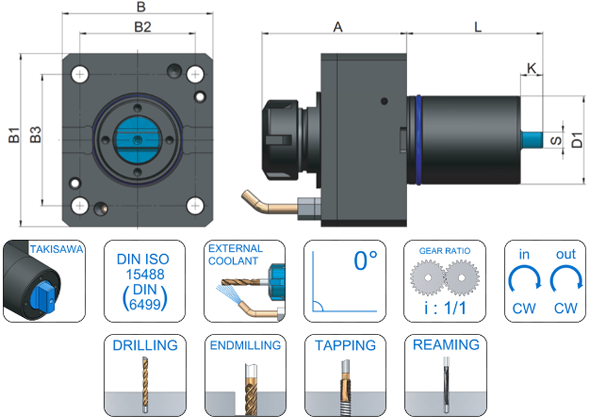

| Coupling | Takisawa TS 4000Y |
| VDI (D1) | 55 |
| Capacity | ER32 (2-20) |
| A (Gauge) | 88mm |
| L | 85mm |
| B | 94mm |
| B1 | 108mm |
| B2 | 72mm |
| B3 | 82mm |
| K | 14mm |
| S | 10mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 70 |
TS4AX55E32088
VDI 55 AXIAL DRIVEN TOOLING ER32 COLLET CHUCK TO SUIT TAKISAWA TS 4000Y COUPLING - 88MM GAUGE - EROGLU
