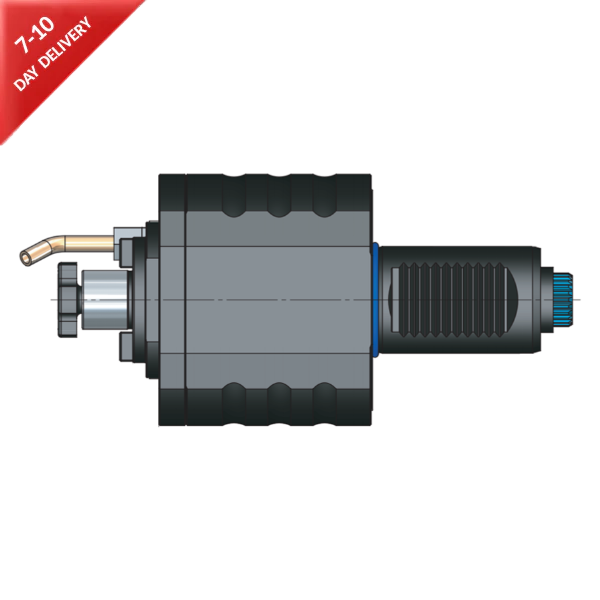

VDI 50 Axial Driven Tooling 27mm Face Mill Arbor to Suit Sauter-Revolver DIN 5480 Coupling - 95mm Gauge - Eroglu
80AX50K27095
Sauter-Revolver DIN 5480 - VDI 50 - 27mm - 95mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

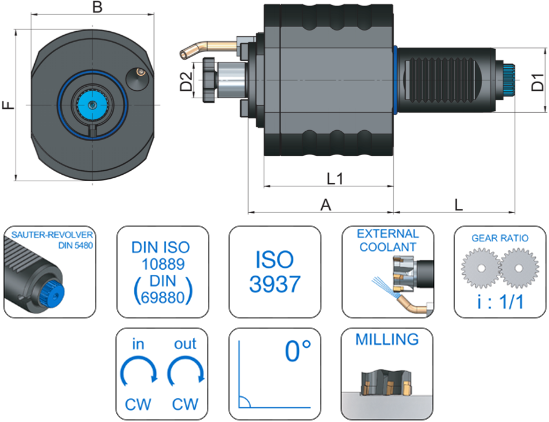

| Coupling | Sauter-Revolver DIN 5480 |
| VDI (D1) | 50 |
| D2 | 27mm |
| A (Gauge) | 95mm |
| L | 93mm |
| L1 | 80mm |
| B | 88mm |
| F | 102mm |
| N.Max (1/min) | 5000 |
| T.Max. (Nm) | 80 |
80AX50K27095
VDI 50 AXIAL DRIVEN TOOLING 27MM FACE MILL ARBOR TO SUIT SAUTER-REVOLVER DIN 5480 COUPLING - 95MM GAUGE - EROGLU
