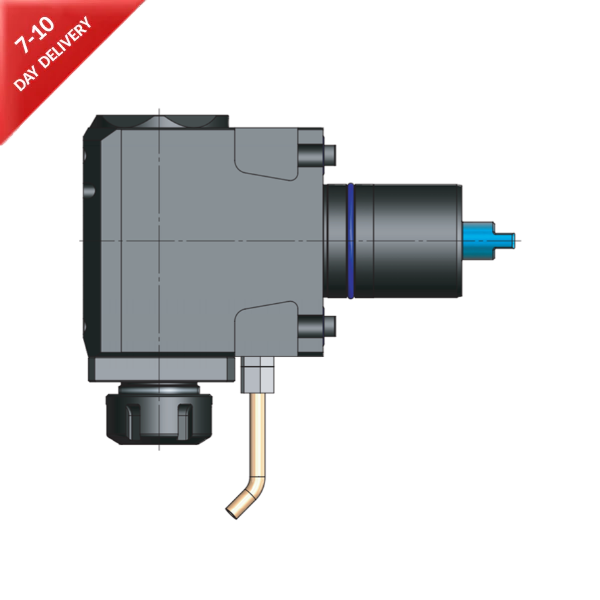

VDI 45 Radial Driven Tooling ER25 Collet Chuck to Suit Miyano BMT45 Coupling - 85mm Gauge - Eroglu
GW2RA45E25AB065
Miyano BMT45 - Radial - VDI 45 - ER25 (2-16) - 85mm Gauge
Compatible Machines:
- Goodway GLS 1500
- Miyano ABX - 15 / 64
- *Miyano BND - BNE - BNS 34 / 42 / 51
* For machines with production date 2007 and younger
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

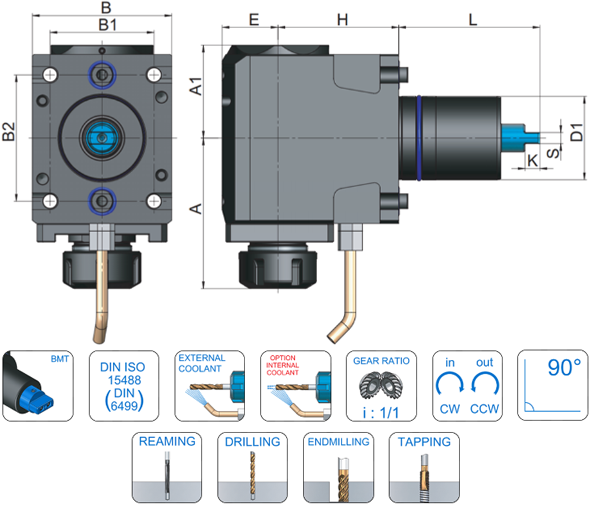

| Coupling | Miyano BMT45 |
| VDI (D1) | 45 |
| Capacity | ER25 (2-16) |
| A (Gauge) | 85mm |
| A1 | 50.5mm |
| E | 30mm |
| H | 65mm |
| L | 76mm |
| B | 82mm |
| B1 | 92mm |
| B2 | 56mm |
| K | 8mm |
| S | 6mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
