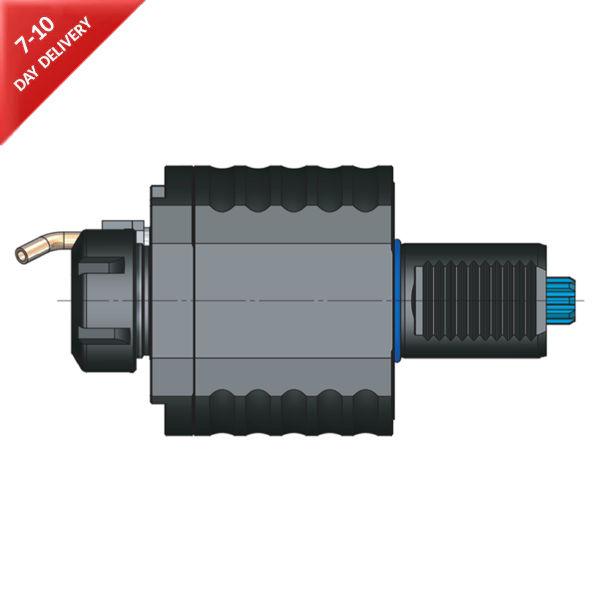

VDI 40 Axial Driven Tooling ER32 Collet Chuck to Suit Sauter-Revolver DIN 5482 Coupling - 112.5mm Gauge - Eroglu
82AX40E32112
Sauter-Revolver DIN 5482 - VDI 40 - ER32 (2-20) - 112.5mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

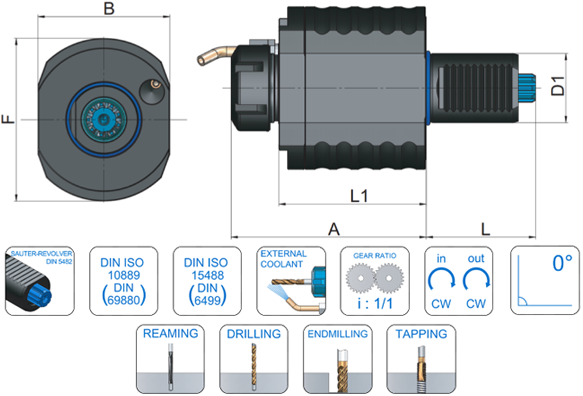

| Coupling | Sauter-Revolver DIN 5482 |
| VDI (D1) | 40 |
| Capacity | ER32 (2-20) |
| A (Gauge) | 112.5mm |
| L | 63mm |
| L1 | 76mm |
| B | 76mm |
| F | 94mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
82AX40E32112
VDI 40 AXIAL DRIVEN TOOLING ER32 COLLET CHUCK TO SUIT SAUTER-REVOLVER DIN 5482 COUPLING - 112.5MM GAUGE - EROGLU
