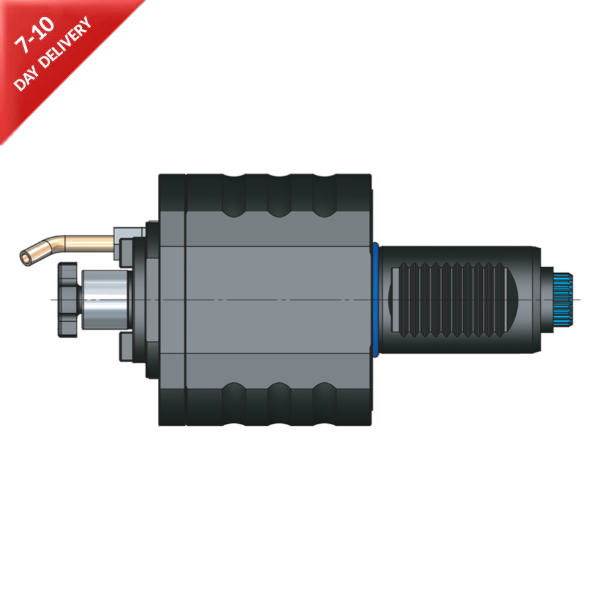

VDI 40 Axial Driven Tooling 22mm Face Mill Arbor to Suit Sauter-Revolver DIN 5480 Coupling - 90mm Gauge - Eroglu
80AX40K22090
Sauter-Revolver DIN 5480 - VDI 40 - 22mm - 90mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

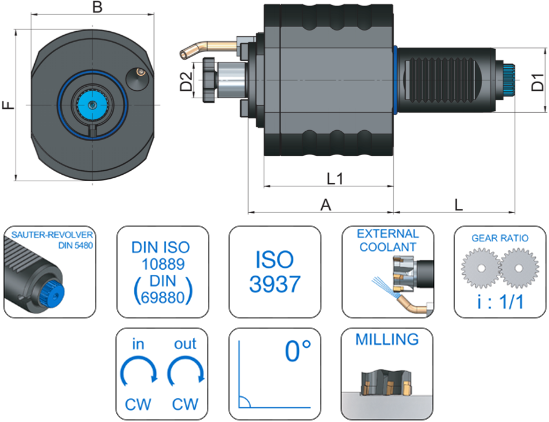

| Coupling | Sauter-Revolver DIN 5480 |
| VDI (D1) | 40 |
| D2 | 22mm |
| A (Gauge) | 90mm |
| L | 75mm |
| L1 | 76mm |
| B | 76mm |
| F | 94mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
80AX40K22090
VDI 40 AXIAL DRIVEN TOOLING 22MM FACE MILL ARBOR TO SUIT SAUTER-REVOLVER DIN 5480 COUPLING - 90MM GAUGE - EROGLU
