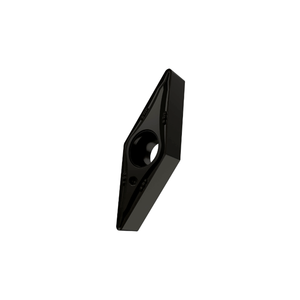

VBMT 160408E-FM T7325 Carbide Turning Inserts (For Stainless Steel) - Dormer Pramet
VBMT 160408E-FM T7325
Dormer Pramet Carbide Turning Inserts.
Single-sided positive turning insert, 35° rhomboid with 5° clearance, inscribed circle diameter of 9.525mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10 -M25, for fine to medium machining of stainless-steels
This price is for a box of 10 inserts.
| Insert Style |
VBMT |
| Insert Size |
160408E |
| Grade |
T7325 |
| Chip Breaker Type |
FM |
| Corner Radius (RE) | 0.8mm |
| Height (IC) |
9.525mm |
| Hole Diameter (D1) | 4.4mm |
| Cutting Edge Length (L) | 16.6mm |
| Insert Thickness (S) | 4.76mm |
| Cutting Edge Material | Carbide |
