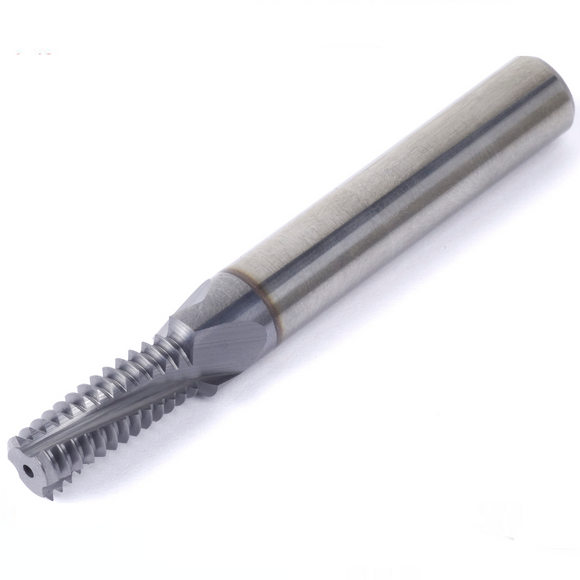

UNEF 12-32- 2xDo - 32 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)
104-00057
Thread Milling TM Solid Carbide HeliCool IN 32 TPI UN Shank Diameter 6 (mm) Cutting Diameter 4.4 (mm) Tool Overhang 11.51 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Axial coolant for blind holes
| Thread Standard | UN |
| Pitch | 32TPI |
| EXT/INT | IN |
| Coolant | Yes |
| L | 11.51mm |
| L1 | 11.51mm |
| Le | 11.51mm |
| Cutting Dia | 4.4mm |
| Z | 3 |
| Zt | 14 |
| Grade | VTH |
| Coating | TiCN |
| Description | HC06044L11-I32UNEFTMVTH |
| Shank Dia | 6mm |
104-00057 UNEF 12-32- 2XDO - 32 TPI PITCH HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH AXIAL COOLANT - (HELICOOL SERIES - VARDEX)
