SCMT 09T308E-FM T9325 Carbide Turning Inserts (For General Use / Steel) - Dormer Pramet
SCMT 09T308E-FM T9325
Dormer Pramet Carbide Turning Inserts.

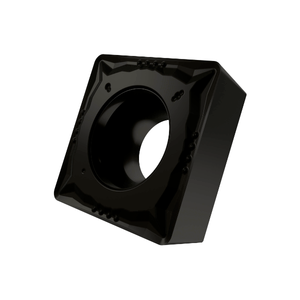

Single-sided positive turning insert, square with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to medium machining of steels and stainless-steels
This price is for a box of 10 inserts.
| Insert Style |
SCMT |
| Insert Size |
09T308E |
| Grade |
T9325 |
| Chip Breaker Type |
FM |
| Corner Radius (RE) | 0.8mm |
| Height (IC) |
9.525mm |
| Hole Diameter (D1) | 4.4mm |
| Cutting Edge Length (L) | 9.53mm |
| Insert Thickness (S) | 3.97mm |
| Cutting Edge Material | Carbide |
