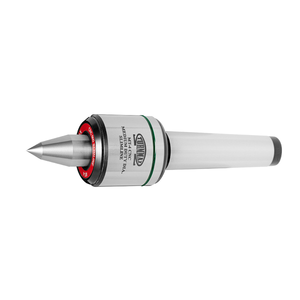

Morse Taper 4 - Small Casing, Extended Point Revolving Centre - Omega Products
OM15715Medium Duty, Small Casing Model
MT4
Features and benefits:
- Excellent problem solver for applications requiring maximum component access
- Capable of running at very high speeds with medium load application
- Sealed for life using high quality German seals, bearings and Kluber grease
- Hardened and precision ground
| Morse Taper | MT 4 |
| Head Diameter (mm) | 42 |
| Point Length x Diameter (mm) | 38 x 20 |
| Max RPM | 5600 |
| Max Load (kg | 375 |
| Concentricity (mm) | 0.008 |
