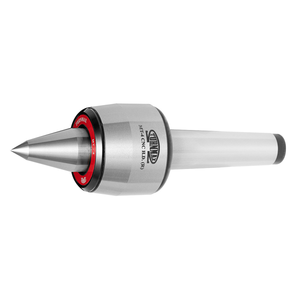

Morse Taper 3 - Heavy Duty, Extended Point Revolving Centre - Omega Products
OM15705Heavy Duty, Extended Point, High Speed 'Type R' Model
MT3
Features and benefits:
- Capable of running at high speeds with heavy loads on CNC machine applications
- Sealed for life using high quality German seals, bearings and Kluber grease
- Hardened and precision ground
| Morse Taper | MT 3 |
| Head Diameter (mm) | 62 |
| Point Length x Diameter (mm) | 51 x 28 |
| Max RPM | 4500 |
| Max Load (kg | 300 |
| Concentricity (mm) | 0.008 |
