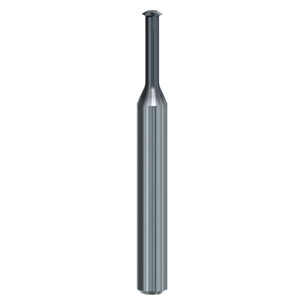

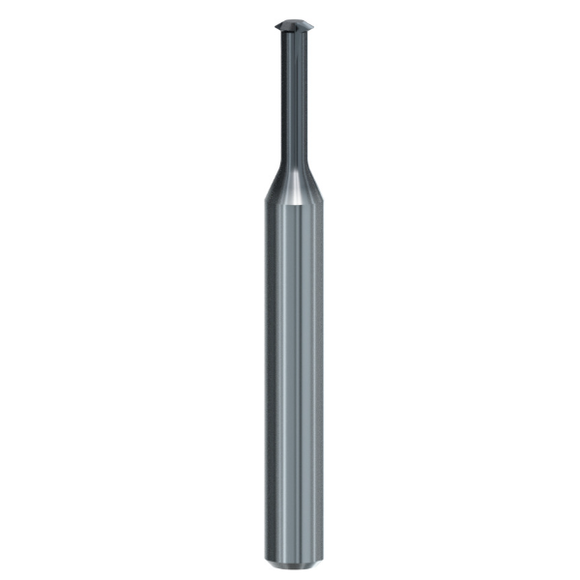

M4 x 0.26-0.7 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken
GF27370A.0040
ZGF-MULTI 3xD M, MF
Machining of countersunk chamfer and internal thread.
- From thread size UNC Nr.2/ UNF Nr.10.
- Pre-drilled taphole necessary.
- Chamfering of tap hole with face bevel possible.
- Tool for several dimensions with corrected thread profile.
- Independent of pitch.
- For internal threads.
- Without through coolant.
| d1 | M4 |
| Pitch (mm) | 0.26-0.7 |
| dF | 3.15mm |
| d2 | 4mm |
| l1 | 44mm |
| l3 | 12.7mm |
| l4 | 28mm |
| Z | 3 |
