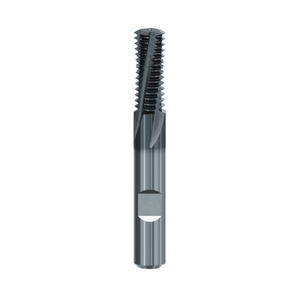

M3 x 0.5mm Metric Coarse Solid Carbide Thread Milling Cutter (Without Through Coolant) - Emuge Franken
GFB6511A.0030
GF-MULTI 2xD (M)
Machining of countersunk chamfer and internal thread.
- Smooth milling thanks to flutes with 15° helix angle.
- Pre-drilled taphole necessary.
- Chamfering of tap hole with face bevel possible.
- For a specific pitch.
- For several dimensions.
- For internal threads.
- Non through coolant.
| d1 | M3 |
| Pitch (mm) | 0.5mm |
| dF | 2.4mm |
| d2 | 6mm |
| l1 | 51mm |
| l2 | 6.2mm |
| l4 | 36mm |
| Z | 3 |
