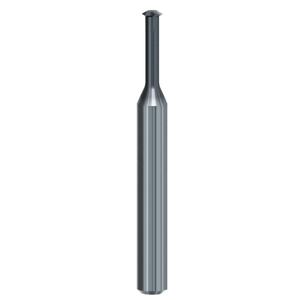

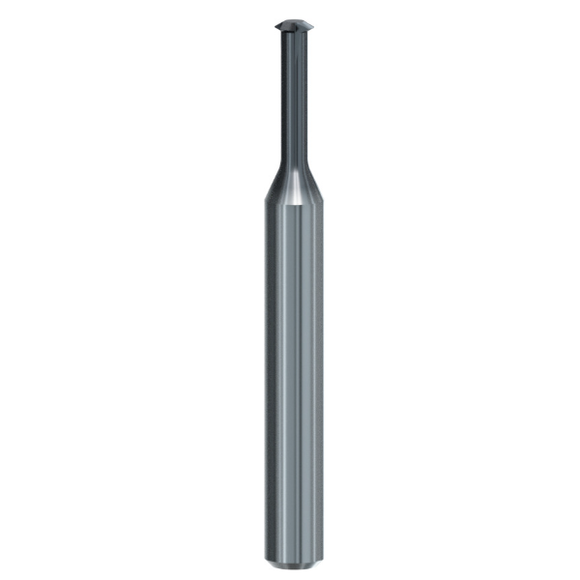

M2 x 0.15-0.45 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken - Precision Engineering Tools EW Equipment

M2 x 0.15-0.45 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken

GF25370A.0020

Emuge

  • £106.87


ZGF-MULTI 2xD M, MF

Machining of countersunk chamfer and internal thread.

  • From thread size M1.
  • Pre-drilled taphole necessary.
  • Chamfering of tap hole with face bevel possible.
  • Tool for several dimensions with corrected thread profile.
  • Independent of pitch.
  • For internal threads.
  • Without through coolant

d1 M2
Pitch (mm) 0.15-0.45
dF 1.52mm
d2 3mm
l1 39mm
l3 5mm
l4 28mm
Z 3
GF25370A.0020 M2 X 0.15-0.45 PITCH (MM) M, MF SOLID CARBIDE CIRCULAR THREAD MILLING CUTTER - EMUGE FRANKEN
