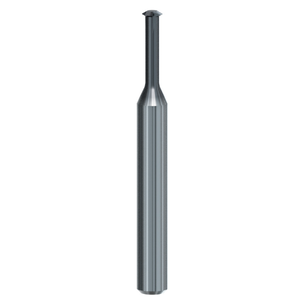

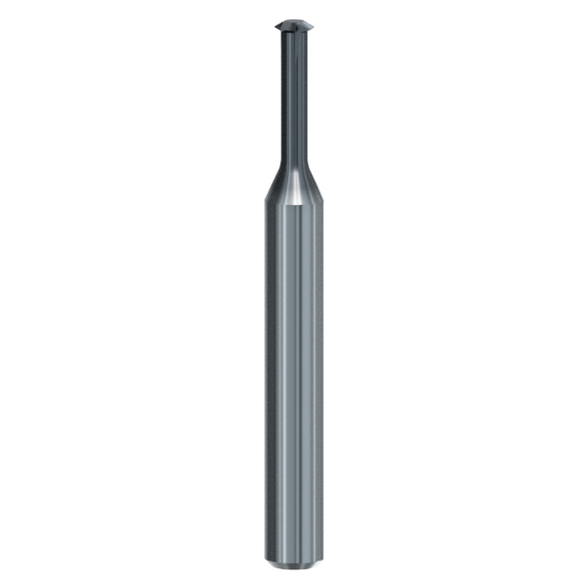

M2.5 x 0.17-0.5 Pitch (mm) M, MF Solid Carbide Circular Thread Milling Cutter - Emuge Franken
GF25370A.0025
ZGF-MULTI 2xD M, MF
Machining of countersunk chamfer and internal thread.
- From thread size M1.
- Pre-drilled taphole necessary.
- Chamfering of tap hole with face bevel possible.
- Tool for several dimensions with corrected thread profile.
- Independent of pitch.
- For internal threads.
- Without through coolant
| d1 | M2.5 |
| Pitch (mm) | 0.17-0.5 |
| dF | 1.95mm |
| d2 | 3mm |
| l1 | 39mm |
| l3 | 6.3mm |
| l4 | 28mm |
| Z | 3 |
