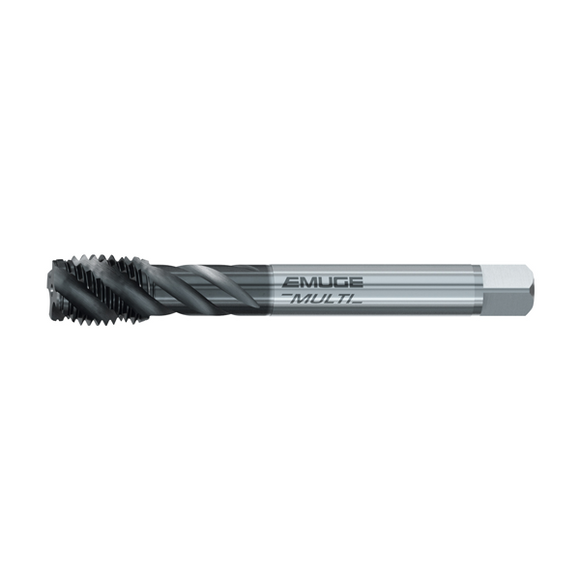

3/8 Whitworth - Emuge Spiral Flute Multi Tap GLT Coated
C550C401.4037
3/8 - G (Whitworth) -SF-MULTI-GLT
HSSE tap for universal application in almost all workpiece materials.
GLT-1 coating - Hard surface coating with anti-friction layer. In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized. The combination of a hard surface coating (approx. 3,000 HV) with an anti-friction layer provides maximum tool life. Chip flow is also improved.
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
- Not to be recommended for threads beginning with an increased diameter.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
Thread | G |
Nominal Size |
3/8 |
Threads Per Inch (TPI) | 19 |
Coolant Supply | Without |
Geometry | MULTI |
Shank Diameter (d2) | 12mm |
OAL (l1) | 100mm |
Length of cutting edge (l2) | 15mm |
Square ■ | 9mm |
Tap hole diameter | 15.25mm |
