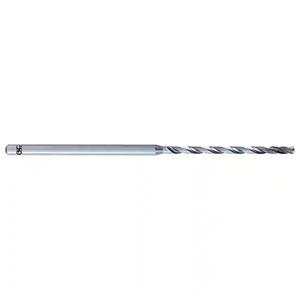

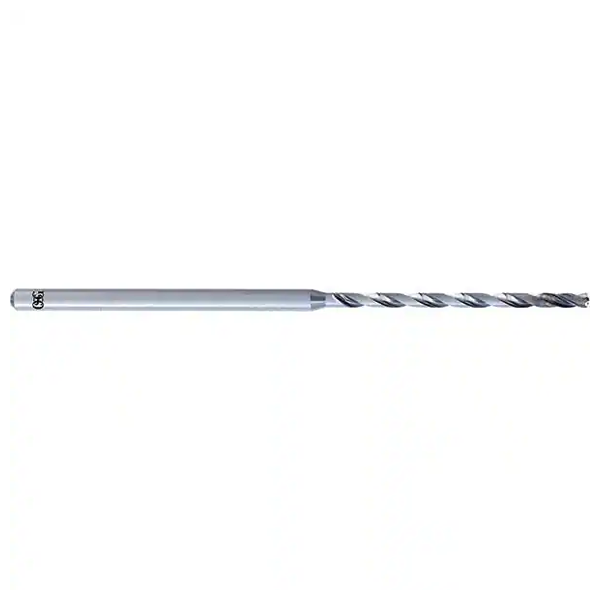

2mm Micro Drill 2 Flute Solid Carbide Through Coolant IchAda Coated 15xD - OSG
OSG-48337120
ADO-MICRO-15D - 2mm
The A Brand ADO-MICRO is ideal for applications in carbon steel, alloy steel, stainless steel, cast iron, ductile cast iron, aluminium alloy, titanium alloy and heat resistant alloy.
Product features and benefits:
- First Choice in quality and performance.
- Oil Holes Large flow volume enables superior chip evacuation.
- Double Margin (15xD) Supports straightness of drill direction.
- Through Coolant/IchAda Coating Provides excellent surface smoothness.
- Extended Flute Chips are discharged from the tip of the flute to the extended flute with enhanced evacuation capability.
- Removed End of Margin Capability to smoothly discharge “micro sludges” that can be easily accumulated around the outer periphery of the tool, which is a key cause of abrupt tool breakage.

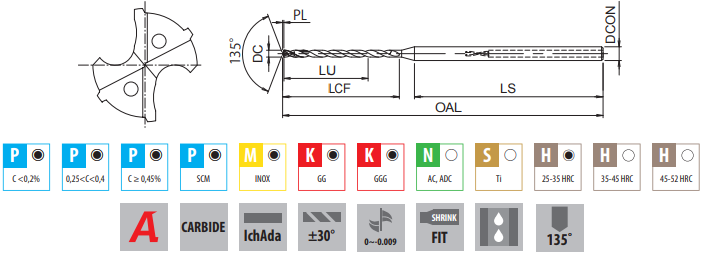

Diameter (DC) | 2mm |
Flute Length (LU) | 30mm |
Neck Length (LCF) | 40mm |
Overall Length (OAL) | 77mm |
Shank Diameter (DCON) | 3.0mm |
Shank Length (LS) | 34.6mm |
PL | 0.4mm |
Shank Tolerance | Shrink Fit |
