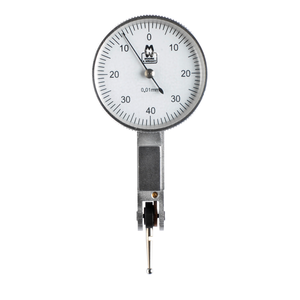

0.8mm Dial Test Indicator MW420 (ø37mm) - Moore & Wright
MW420-04
MW420 - ø37mm Dial
The Moore & Wright 420 series dial indicator meets ANSI B89.1.10, and DIN2270 standards.
Featuring a rotating dial and two dovetail clamps, the Moore & Wright 420 series dial indicator boasts high precision fully jewelled bearings and automatic reversal of measuring direction.
Features and Benefits:
- Standard: ANSI B89.1.10, DIN2270
- Automatic reversal of measuring direction
- High precision fully jewelled bearings
- Rotating dial
- Two dovetail clamps
- Styli length: 12mm / 1/2", M1.4 thread
| Range | 0.8mm |
| Accuracy | 0.013mm |
| Dial Reading | 0-40-0 |
| Dial Diameter | 37mm |
| Graduation | 0.01mm |
