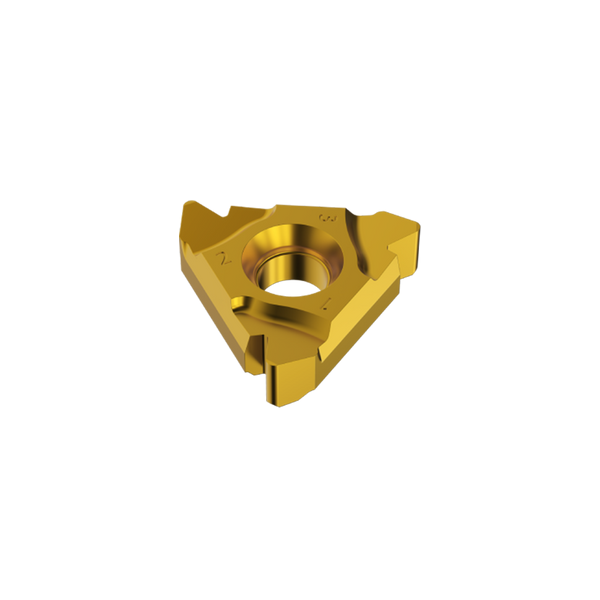

0.5-3.0mm 48-8TPI - 16DTERAG55 External Partial Profile 55° Threading Insert VK8 Grade - Vargus Mach TT
093-00004
Partial Profile 55° - 16DTERAG55
Features and Benefits:
- Improved Rake & Reinforced Geometry - For high resistance with a reduced number of passes
- VK8 Grade - High wear resistance for general purpose applications. AlTiN + TiN PVD Coating
- Improved Profile Design - Superior threading surface finish
- Advanced Surface Treatment - Reinforced cutting edge and smooth surface finish
- Vargus Dovetail Clamping System - Super rigid, designed for high loads.
*The price of this product is the price per insert (1x pack)*

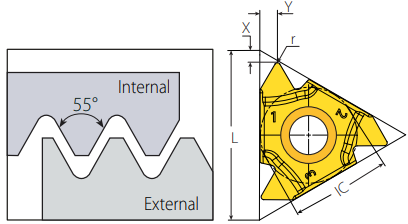

| IC | 3/8" (16ER) |
|
L |
16mm |
| Range (mm) | 0.5-3.0mm |
| Range (TPI) | 48-8 |
| r | 0.07mm |
| X | 1.1mm |
| Y | 1.7mm |
| Anvil | YE3 |
| Toolholder | AL....-3DT |
