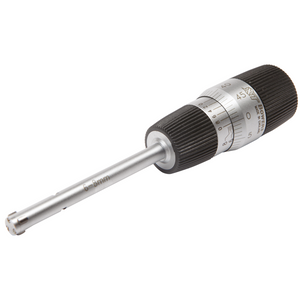

2.5-3mm XTA Micro Analogue Bore Gauge - Bowers Group
MXTA2M
2.5-3mm - MXTA2M
The XTA Micro is a more compact mechanical controller, lighter and more ergonomically designed. The XTA Micro's Vernier scale improves resolution from 5µ to 2µ.
Features and Benefits:
- Graduation XTA Micro 2-6mm: 0.001mm, 6-20mm: 0.002mm
- Tungsten carbide measuring faces on all 3-point heads from 12.5mm
- Blind bore measurement from 2mm-6mm and above 12.5mm (0.500")
- Extensions available above 6mm for deep hole measurement
- Ratchet stop to ensure consistent measurement
- Setting rings included with individual instruments and sets
- UKAS certificates supplied as standard with all setting rings
- UKAS certificate supplied as standard with all XT mechanical gauges
- Serial number on all gauges
- Bore gauges manufactured according to DIN 863, part 4
- Supplied in fitted case
| Range | 2.5-3mm |
| Accuracy | 0.004mm |
| Depth | 9mm |
| Setting Ring | 2.50mm |
