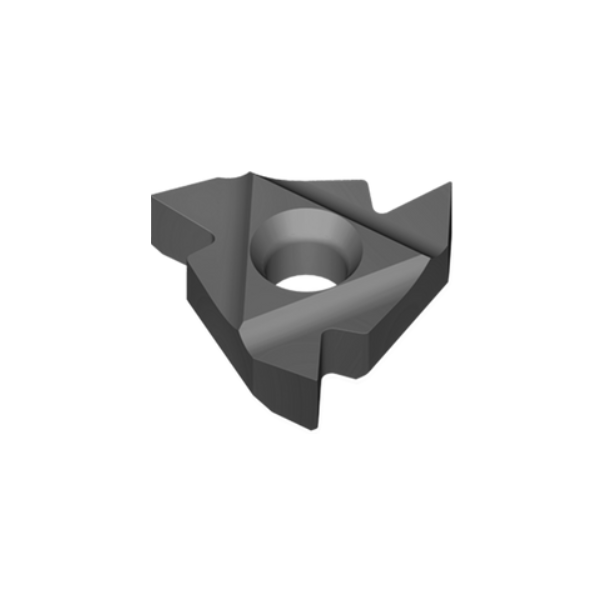

5IR4.5WVTX Internal Whitworth RH Threading Insert VTX Grade - Vargus
021-01687
Whitworth - 5IR4.5WVTX - 27IR4.5WVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

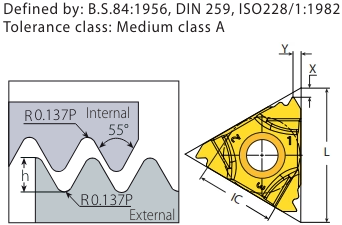

| IC | 5/8" (27IR) |
|
L |
27mm |
| Pitch (TPI) | 4.5 |
| h min | 3.61mm |
| X | 1.8mm |
| Y | 2.6mm |
| Tolerance | Medium class A |
| Anvil | YI5 |
| Toolholder | AVR..-5 |
021-01687
