3IR48WVTX Internal Whitworth RH Threading Insert VTX Grade - Vargus
021-05611

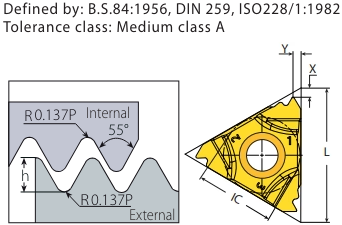

Whitworth - 3IR48WVTX - 16IR48WVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*
| IC | 3/8" (16IR) |
|
L |
16mm |
| Pitch (TPI) | 48 |
| h min | 0.34mm |
| X | 0.6mm |
| Y | 0.6mm |
| Tolerance | Medium class A |
| Anvil | YI3 |
| Toolholder | AVR..-3 |
