2IR26WVTX Internal Whitworth RH Threading Insert VTX Grade - Vargus
021-00348

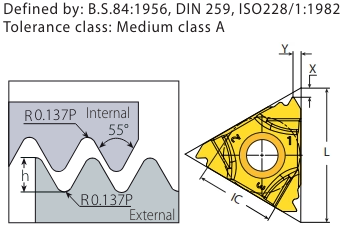

Whitworth - 2IR26WVTX - 11IR26WVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*
| IC | 1/4" (11IR) |
|
L |
11mm |
| Pitch (TPI) | 26 |
| h min | 0.63mm |
| X | 0.7mm |
| Y | 0.8mm |
| Tolerance | Medium class A |
| Anvil | - |
| Toolholder | NVR..-2 |
021-00348
