2IR24WVTX Internal Whitworth RH Threading Insert VTX Grade - Vargus
021-00346

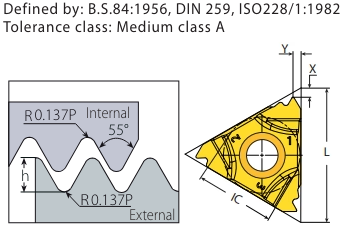

Whitworth - 2IR24WVTX - 11IR24WVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*
| IC | 1/4" (11IR) |
|
L |
11mm |
| Pitch (TPI) | 24 |
| h min | 0.68mm |
| X | 0.7mm |
| Y | 0.8mm |
| Tolerance | Medium class A |
| Anvil | - |
| Toolholder | NVR..-2 |
021-00346
