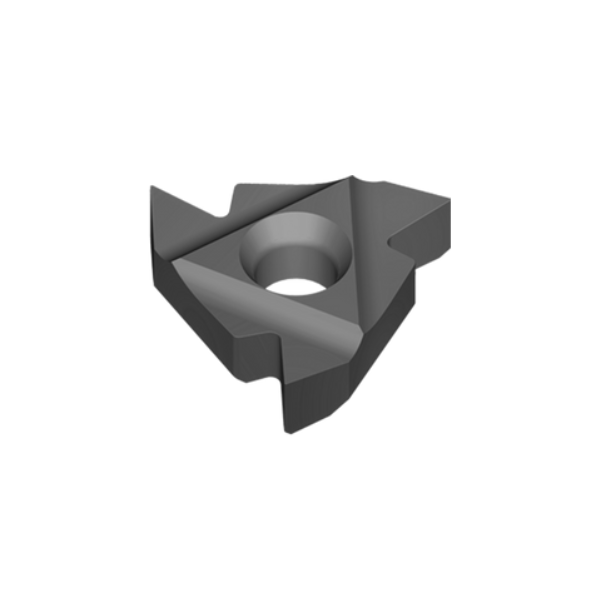

3ER22WVTX External Whitworth RH Threading Insert VTX Grade - Vargus
021-00774
Whitworth - 3ER22WVTX - 16ER22WVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

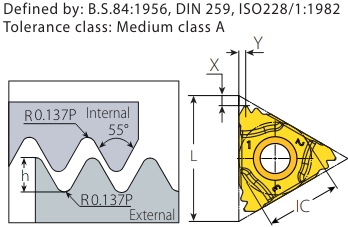

| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (TPI) | 22 |
| h min | 0.74mm |
| X | 0.8mm |
| Y | 0.9mm |
| Tolerance | Medium class A |
| Anvil | YE3 |
| Toolholder | AL..-3 |
021-00774
