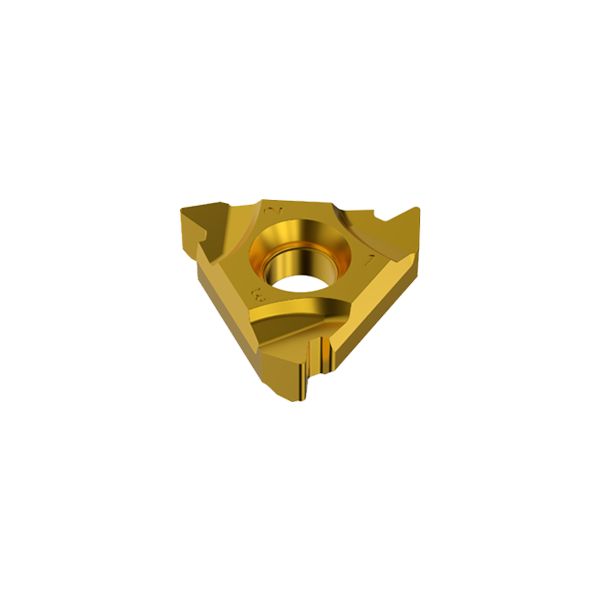

26 TPI - 16DTIR26W Internal Whitworth Threading Insert VK8 Grade - Vargus Mach TT
093-00172
Whitworth (BSW, BSP) - 16DTIR26W
Features and Benefits:
- Improved Rake & Reinforced Geometry - For high resistance with a reduced number of passes
- VK8 Grade - High wear resistance for general purpose applications. AlTiN + TiN PVD Coating
- Improved Profile Design - Superior threading surface finish
- Advanced Surface Treatment - Reinforced cutting edge and smooth surface finish
- Vargus Dovetail Clamping System - Super rigid, designed for high loads.
*The price of this product is the price per insert (1x pack)*

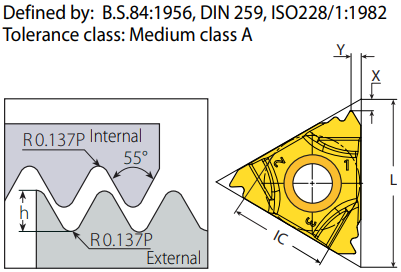

| IC | 3/8" (16IR) |
|
L |
16mm |
| Pitch (TPI) | 26 |
| h min | 0.63mm |
| X | 1.3mm |
| Y | 0.6mm |
| Anvil | YI3 |
| Toolholder | .VRC...-3DT |
