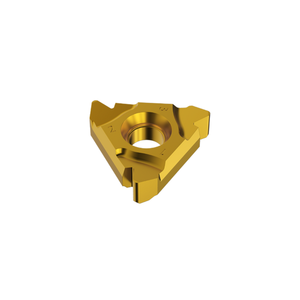

5 TPI - 22DTER5W External Whitworth Threading Insert VK8 Grade - Vargus Mach TT
093-00130
Whitworth (BSW, BSP) - 22DTER5W
Features and Benefits:
- Improved Rake & Reinforced Geometry - For high resistance with a reduced number of passes
- VK8 Grade - High wear resistance for general purpose applications. AlTiN + TiN PVD Coating
- Improved Profile Design - Superior threading surface finish
- Advanced Surface Treatment - Reinforced cutting edge and smooth surface finish
- Vargus Dovetail Clamping System - Super rigid, designed for high loads.
*The price of this product is the price per insert (1x pack)*

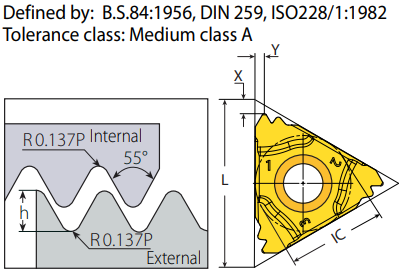

| IC | 1/2" (22ER) |
|
L |
22mm |
| Pitch (TPI) | 5 |
| h min | 3.25mm |
| X | 1.7mm |
| Y | 2.3mm |
| Anvil | YE4 |
| Toolholder | AL....-4DT |
