VDI 40 Driven Tooling ER40 Collet Chuck to Suit Baruffaldi TOEM Coupling - 126.5mm Gauge - Eroglu
TOAX40E40126
Baruffaldi TOEM - VDI 40 - ER40 (3-26) - 126.5mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

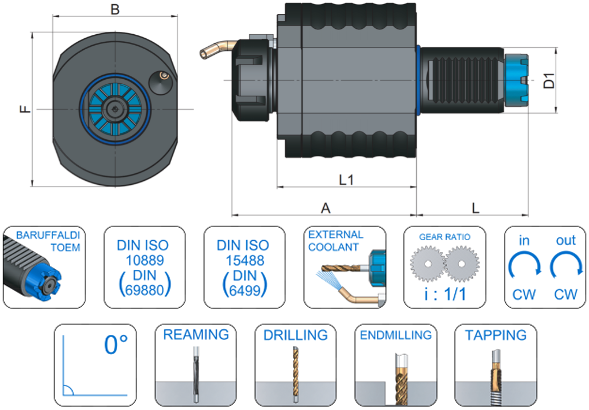

| Coupling | Baruffaldi TOEM |
| VDI (D1) | 40 |
| Capacity | ER40 (3-26) |
| A (Gauge) | 126.5mm |
| L | 68mm |
| L1 | 76mm |
| B | 76mm |
| F | 94mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
