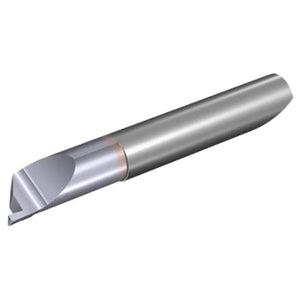

Vargus Microscope Internal Face Grooving Insert - M662FGW239L15RVBX - 2.39mm Groove Width - 0.15 Radius - 6.2mm Min Bore Dia (6mm Shank)
044-00115
M662FGW239L15RVBX
Microscope Internal Face Grooving Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M662FGW239L15RVBX |
| Shank Dia d(mm) |
6.0 |
| Min Bore Dia D min. (mm) |
6.2 |
| Groove Width W±0.025 | 2.39 |
| t max | 5.0 |
| L1 | 15 |
| F | 2.95 |
| Rad | 0.15 |
| a | 5.95 |
| b | 5.75 |
| L2 ref* | 18.3 |
| L ref | 42.0 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
