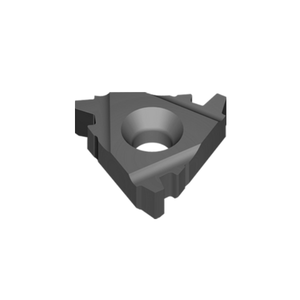

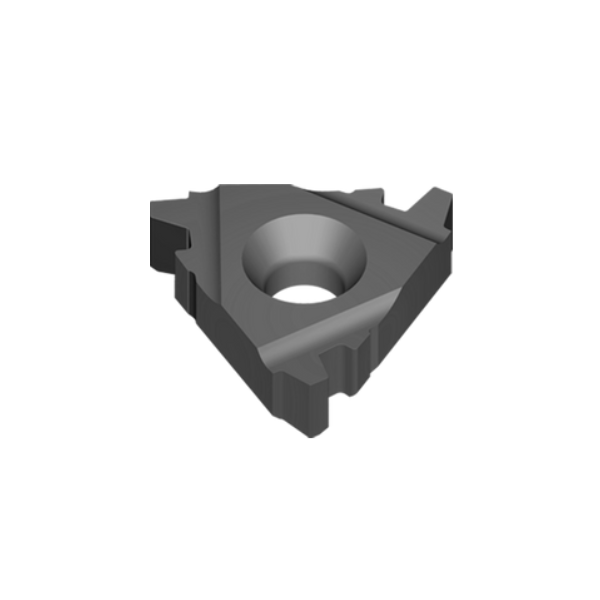

3IR1.5TRVTX Internal Trapezoidal RH Threading Insert VTX Grade - Vargus
021-01306
Trapezoidal - 3IR1.5TRVTX - 16IR1.5TRVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

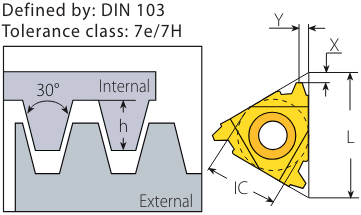

| IC | 3/8" (16IR) |
|
L |
16mm |
| Pitch (mm) | 1.5mm |
| h min | 0.90mm |
| X | 1.0mm |
| Y | 1.1mm |
| Tolerance | 7H |
| Anvil | YI3 |
| Toolholder | AVR..-3 |
021-01306
