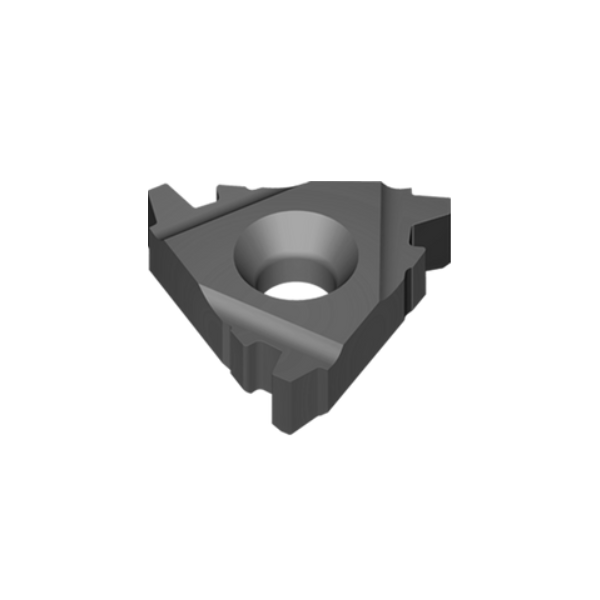

4ER4.0TRVTX External Trapezoidal RH Threading Insert VTX Grade - Vargus
021-59486
Trapezoidal - 4ER4.0TRVTX - 22ER4.0TRVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

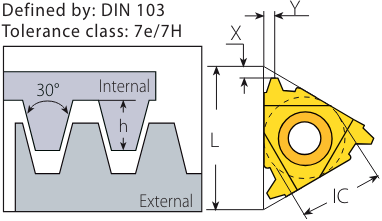

| IC | 1/2" (22ER) |
|
L |
22mm |
| Pitch (mm) | 4.0mm |
| h min | 2.25mm |
| X | 1.7mm |
| Y | 1.9mm |
| Tolerance | 7e |
| Anvil | YE4 |
| Toolholder | AL..-4 |
