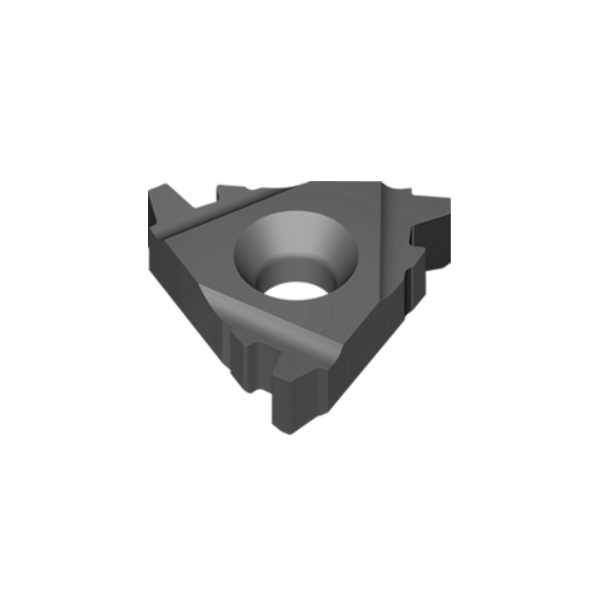

3ER2.5TRVTX External Trapezoidal RH Threading Insert VTX Grade - Vargus
021-05352
Trapezoidal - 3ER2.5TRVTX - 16ER2.5TRVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

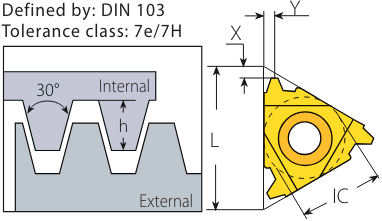

| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (mm) | 2.5mm |
| h min | 1.55mm |
| X | 1.2mm |
| Y | 1.4mm |
| Tolerance | 7e |
| Anvil | YE3 |
| Toolholder | AL..-3 |
021-05352
