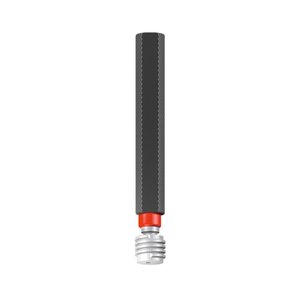

TR 38 x 7 7H Thread Plug Gauge no-go - Emuge Franken
L0140100.7063
TR DIN 103
No-go plug gauge for gauging the internal thread.
Product features and benefits:
Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
With insertion neck and free machining of thread core for precision work.
*Please note these are not available on a guaranteed next day delivery*
| Thread | TR |
| Nominal Diameter (mm) | 38mm |
| Pitch (mm) |
7mm |
| Rotation | R/H |
| Standard | DIN2283 |
| Gauge System | DIN 103-9 |
