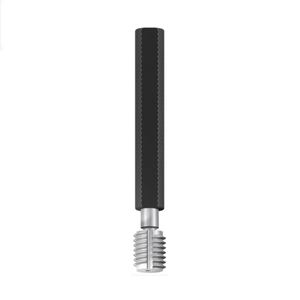

TR 50 x 8 7H Thread Plug Gauge go - Emuge Franken
L0120100.7069
TR DIN 103
Go thread plug gauge for gauging the internal thread.
Product features and benefits:
Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
With dirt groove (from Ø 5.5 mm) and removed incomplete threads for reliable gauging.
*Please note these are not available on a guaranteed next day delivery*
| Thread | TR |
| Nominal Diameter (mm) | 50mm |
| Pitch (mm) |
8mm |
| Rotation | R/H |
| Standard | DIN2281 |
| Gauge System | DIN 103-9 |
