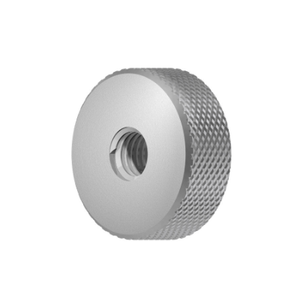

TR-F 9 x 1.5 7e go Thread Ring Gauge - Emuge Franken
L0200500.7111
TR-F DIN 103
Go thread ring gauge for gauging the external thread.
Product features and benefits:
Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
*Please note these are not available on a guaranteed next day delivery*
| Thread | TRF |
| Nominal Diameter (mm) | 9mm |
| Pitch (mm) |
1.5mm |
| Rotation | R/H |
| Standard | DIN2285 |
| Gauge System | DIN 103-9 |
