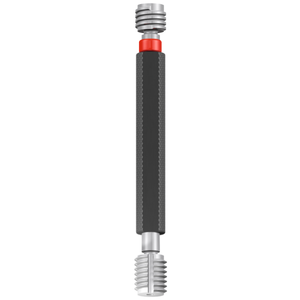

TR-F 9 x 1.5 7H Thread Plug Gauge go/no-go - Emuge Franken
L0100100.7111
TR-F DIN 103
Go/no-go thread plug gauge for gauging the internal thread.
Product features and benefits:
Very dimensionally stable due to aged gauge steel.
Hardness is clearly above the standardized minimum value.
Go plug gauge with dirt groove (from Ø 5.5 mm) and removed incomplete threads for reliable gauging.
No-go plug gauge with insertion neck and free machining of thread core for precision work.
*Please note these are not available on a guaranteed next day delivery*
| Thread | TRF |
| Nominal Diameter (mm) | 9mm |
| Pitch (mm) |
1.5mm |
| Rotation | R/H |
| Standard | DIN2280 |
| Gauge System | DIN 103-9 |
