TNMG 160412E-FM T8430 Carbide Turning Inserts (For Stainless Steel) - Dormer Pramet
TNMG 160412E-FM T8430
Dormer Pramet Carbide Turning Inserts.

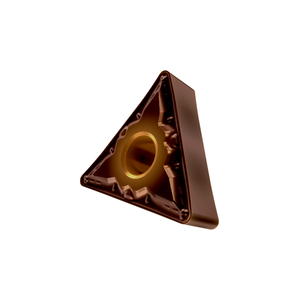

Double-sided negative turning insert, triangular with inscribed circle diameter of 9.525mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P20 -P40, for fine to medium machining of steels
This price is for a box of 10 inserts.
| Insert Style |
TNMG |
| Insert Size |
160412E |
| Grade |
T8430 |
| Chip Breaker Type |
FM |
| Corner Radius (RE) | 1.2mm |
| Height (IC) | 9.525mm |
| Hole Diameter (D1) | 3.81mm |
| Cutting Edge Length (L) | 16.5mm |
| Insert Thickness (S) | 4.76mm |
| Cutting Edge Material | Carbide |
