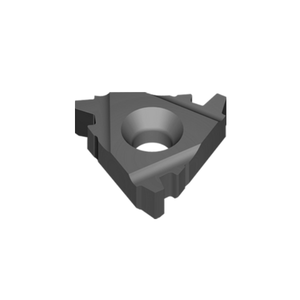

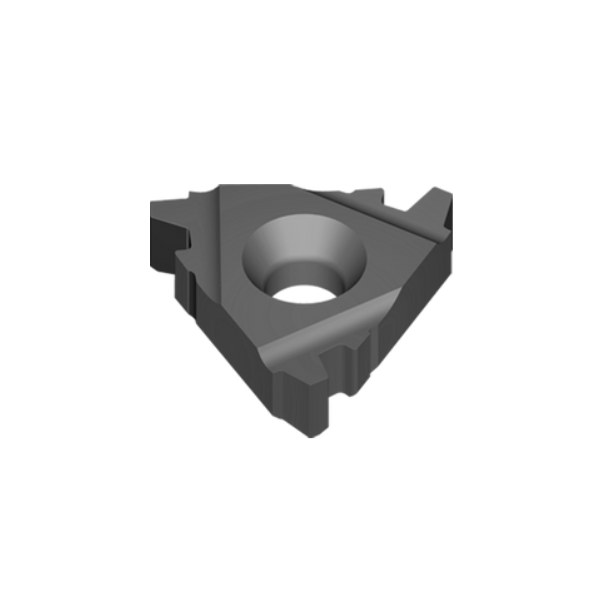

3IR8STACMEVTX Internal Stub ACME RH Threading Insert VTX Grade - Vargus
021-52837
Stub ACME - 3IR8STACMEVTX - 16IR8STACMEVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

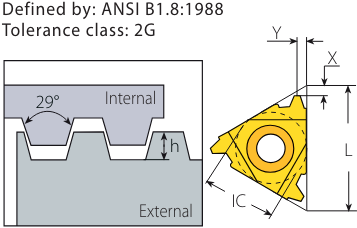

| IC | 3/8" (16IR) |
|
L |
16mm |
| Pitch (TPI) | 8 |
| h min | 1.21mm |
| X | 1.4mm |
| Y | 1.5mm |
| Tolerance | 2G |
| Anvil | YI3 |
| Toolholder | AVR..-3 |
