2IR16STACMEVTX Internal Stub ACME RH Threading Insert VTX Grade - Vargus
021-51921
Stub ACME - 2IR16STACMEVTX - 11IR16STACMEVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

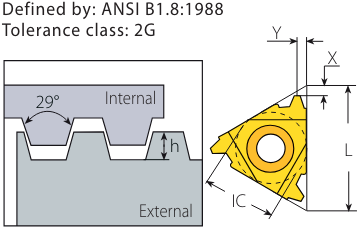

| IC | 1/4" (11IR) |
|
L |
11mm |
| Pitch (TPI) | 16 |
| h min | 0.60mm |
| X | 1.0mm |
| Y | 1.0mm |
| Tolerance | 2G |
| Anvil | - |
| Toolholder | NVR..-2 |
021-51921
