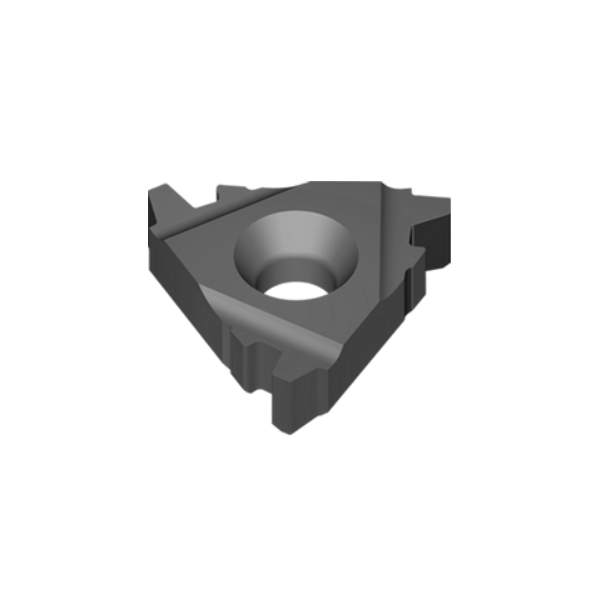

3ER6STACMEVTX External Stub ACME RH Threading Insert VTX Grade - Vargus
021-53828
Stub ACME - 3ER6STACMEVTX - 16ER6STACMEVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

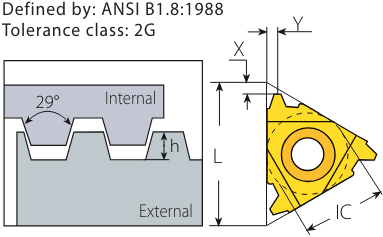

| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (TPI) | 6 |
| h min | 1.52mm |
| X | 1.7mm |
| Y | 1.8mm |
| Tolerance | 2G |
| Anvil | YE3 |
| Toolholder | AL..-3 |
