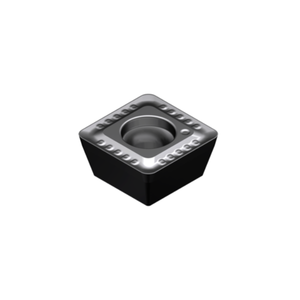

SPMX 090408-MS ET602 Carbide Drilling Inserts (For General Purpose) - Europa Tool (10 Pack)
DI00015
Europa Tool Carbide Drilling Inserts - For use on all SPMG/SPMX Holders.
SPMX 090408-MS ET602 - 90° Square Type
Edge Preparation Guide - MS Sharp geometry for Stainless Steel and HRSA.
Grade - ET602 Ultra dense PVD coating optimised for drilling applications, suitable for most materials. PVD TiAlN coated P20 - P35, M20 - M30, K20 - K35, N05 - N35, S15 - S25.
The price is for a box of 10 inserts.
| Insert Description |
SPMX 090408-MS |
| Grade |
ET602 |
| IC | 9.8mm |
| S | 4.3mm |
| RE | 0.8mm |
| Feed per rev fn |
0.04 - 0.12 |
