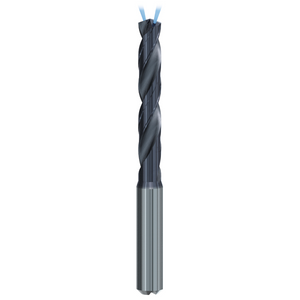

3.9mm Solid Carbide Drill BasicDrill 5xD with Through Coolant - Emuge Franken
TA211344.0390
BasicDrill BD101 - 5xD - HA
Solid carbide twist drill BASIC Drill, 5xD in BASIC geometry for universal use.
Product features and benefits:
- For use in various materials with steel as main application area.
-
Four guide chamfers for improved guidance and hole quality.
- Internal cooling channels for high process reliability.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Nominal Diameter (d1) | 3.9mm |
| Shank Diameter (d2) | 6mm |
| Overall Length (l1) | 74mm |
| Usable Length (l3) | 29mm |
| Number of Margins | 4 |
| Type of Construction Standard | DIN 6537L |
| Coating | TIALN-T63 |
| Coolant Supply | Internal Coolant Supply |
| Point Angle | 140° |
| Tolerance | IT9-IT10 |
