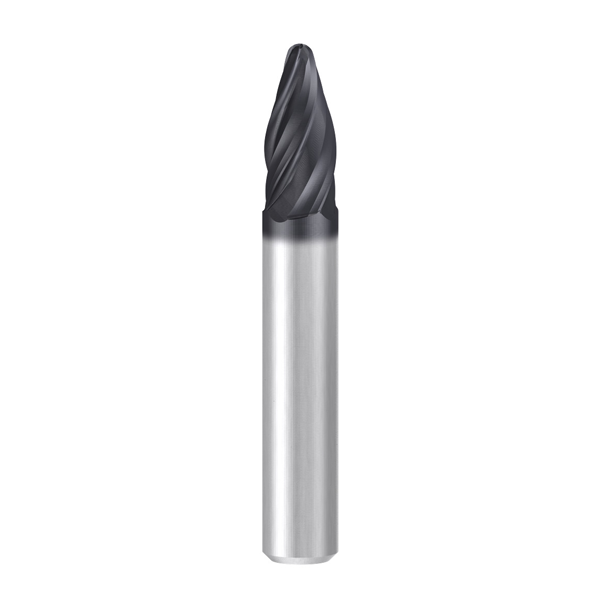

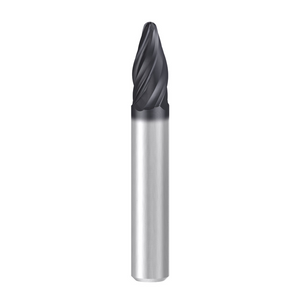

4mm x 0.75mm 3 Flute Circle Segment End Mill with Oval Form - VR Expert Emuge Franken
3538L.04060A
Expert carbide circle segment end mill in oval form for finishing applications in many materials, including high-strength materials.
Product features and benefits:
- Special geometry allows larger line jumps with the same surface quality and time savings of up to 90%
- Low-vibration machining due to variable spacing
- Especially suitable for high-strength materials
- For almost all materials
- Suitable for HSC finishing
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

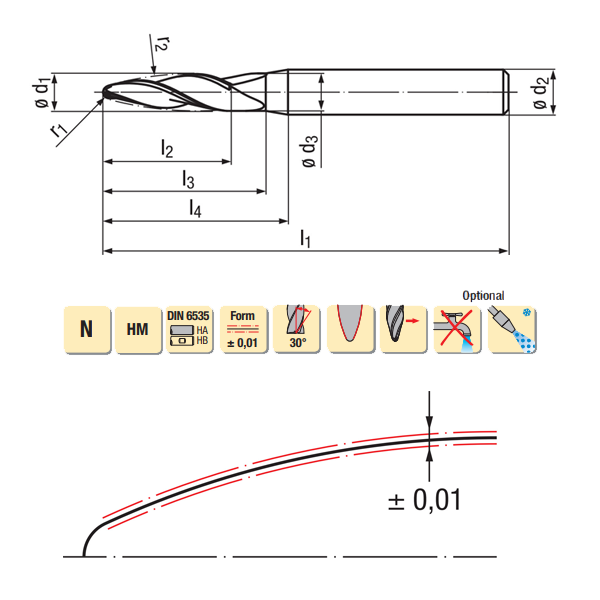

| Cutting Diameter (Ød1) | 4mm |
| Radius (r1) | 0.75mm |
| Radius (r2) | 60mm |
| Cutting Length (l2) | 14mm |
| Neck Length (l3) | 18mm |
| Length of shank connection (l4) | 25mm |
| Overall Length (l1) | 62mm |
| Neck Diameter (Ød3) | 4mm |
| Shank Diameter (Ød2) | 6mm |
| Shank Diameter Tolerance | h6 |
| Flutes (Z) | 3 |
| Tool Interface | Straight Shank |
| Tool Interface Norm | DIN 6535 |
| Coating | ALCR |
| Internal Coolant Supply | Without Internal Cooling |
| Form Tolerance | ±0.01mm |
| Helix Angle | 30° |
