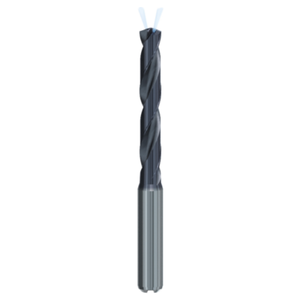

For M6 x 0.75 Metric Fine Taps - TA219924 - Solid Carbide Drill - 5 x D MULTI
Features and Benefits:
- Solid carbide twist drill EF-Drill Multi, DIN 6537 L, 5xD for universal use in different materials.
- Special TIALN - coating for excellent wear resistance and drilling performance.
- Internal cooling channels for high process reliability.
- With side-lock clamping (Form HB) or with inclined clamping flat (Form HE) upon request.
- Point Angle - 140°

Tool Indent |
M6 x 0.75 |
Diameter (D1)
|
5.7mm |
Overall Length (l1)
|
82mm |
Flute Length (l2)
|
44mm |
Usable Length (l3)
|
35mm |
Shank Length (l4)
|
36mm |
Shank Diameter (D2)
|
6mm |
Coating |
TIALN-T21 |
Tolerance |
m7 |
TA219924.0570 5.7MM SOLID CARBIDE 5 X D MULTI DRILL (FOR M6 X 0.75 MF TAP) - EMUGE FRANKEN
