SNMG 120408E-RM T9415 Carbide Turning Inserts (For General Use / Steel) - Dormer Pramet

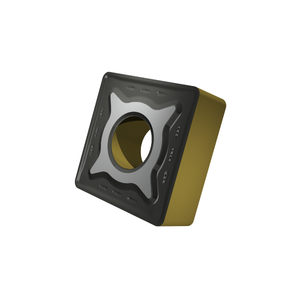

SNMG 120408E-RM T9415
Dormer Pramet Carbide Turning Inserts.
Double-sided negative turning insert, square with inscribed circle diameter of 12.7mm, 4.76mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for medium to heavy machining of steels
This price is for a box of 10 inserts.
| Insert Style |
SNMG |
| Insert Size |
120408E |
| Grade |
T9415 |
| Chip Breaker Type |
RM |
| Corner Radius (RE) | 0.8mm |
| Height (IC) | 12.7mm |
| Hole Diameter (D1) | 5.16mm |
| Cutting Edge Length (L) | 12.7mm |
| Insert Thickness (S) | 4.76mm |
| Cutting Edge Material | Carbide |
