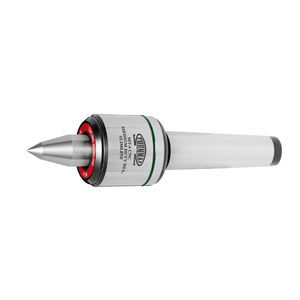

Morse Taper 2 - Small Casing, Extended Point Revolving Centre - Omega Products
OM15713Medium Duty, Small Casing Model
MT2
Features and benefits:
- Excellent problem solver for applications requiring maximum component access
- Capable of running at very high speeds with medium load application
- Sealed for life using high quality German seals, bearings and Kluber grease
- Hardened and precision ground
| Morse Taper | MT 2 |
| Head Diameter (mm) | 34 |
| Point Length x Diameter (mm) | 29 x 15 |
| Max RPM | 6300 |
| Max Load (kg | 125 |
| Concentricity (mm) | 0.008 |
