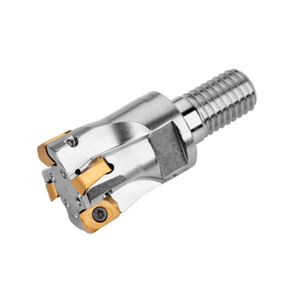

20E3R030M10-SBN10-C Dormer Pramet 13.4mm Modular Head for High Feed Milling
20E3R030M10-SBN10-C
20E3R030M10-SBN10-C - Modular Head for High Feed Milling
Features and Benefits:
- High feed cutter with positve/negative geometry which utilises 2 off BNGX 10T3.. or ANHX 10T3.. inserts.
- Through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling.
- Maximum depth of cut of 1.0mm.
| Cutting diameter maximum (DCX) | 20mm |
| Cutting diameter (DC) | 13.4mm |
| Overall length (OAL) | 49mm |
| Connection diameter (DCON) | 10.5mm |
| Functional length (LF) | 30mm |
| Thread diameter size (TDZ) | M10 |
| Peripheral effective cutting edge count (ZEFP) | 3 |
