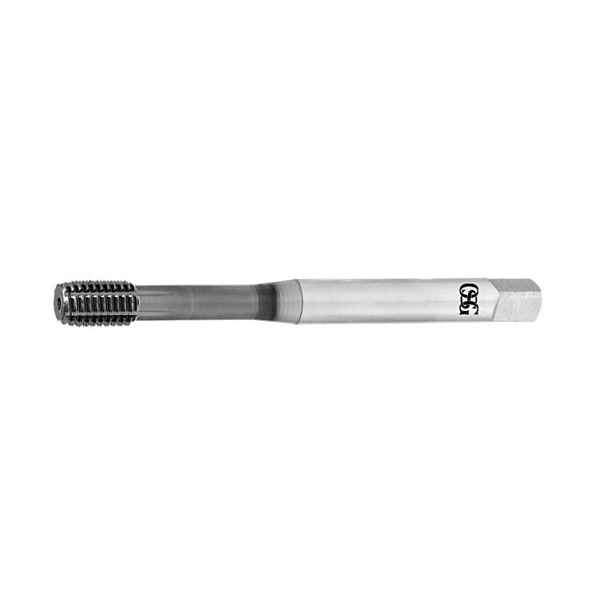

M2 x 0.4 S-XPF Thread Forming Tap TiCN Coated For General Use - OSG

OSG-48030125

OSG

  • £59.99


S-XPF - M2 x 0.4

Product features and benefits:

  • First choice in quality and performance
  • HSSE forming tap for through and blind holes
  • Multilayer TiCN coating
  • For general steels, stainless steels, aluminium

Thread Type M
Thread Diameter (TD) 2mm
Pitch (TP) 0.4mm
Functional Length (LF) 45mm
Neck Length (LU) 8mm
Shank Diameter (DCON) 2.8mm
Drive Size (DRVS) 2.1mm
Number of Flutes (NOF) 4
Pre-machined Hole Diameter (PHD)  1.82 ~ 1.85
Type 1
DIN DIN 2174
OSG-48030125 M2 X 0.4 S-XPF THREAD FORMING TAP TICN COATED FOR GENERAL USE - OSG
